PRODUCT

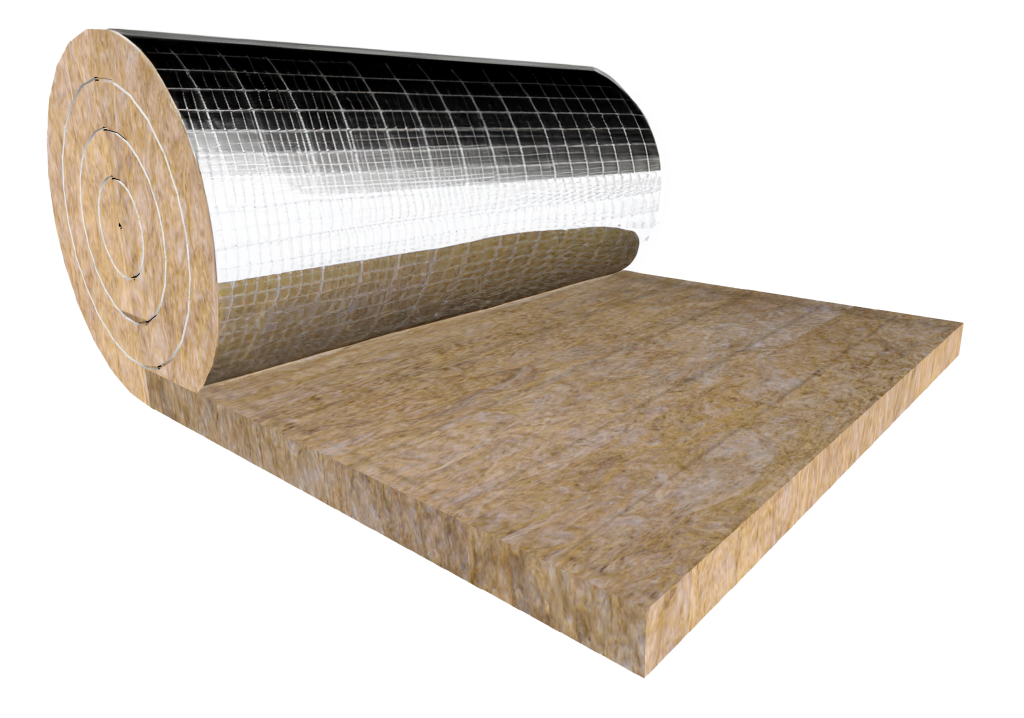

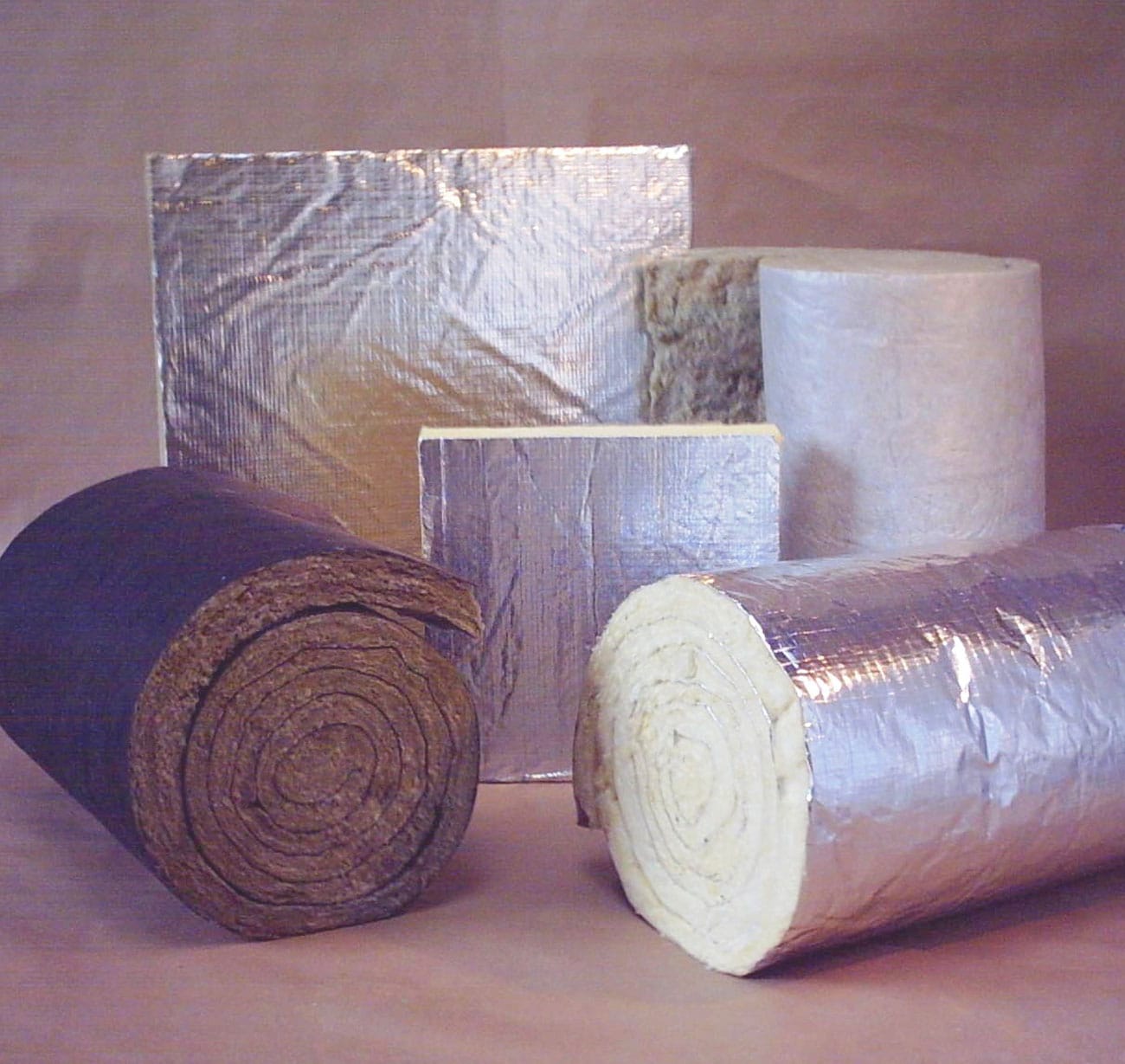

Faced and enclosed insulation

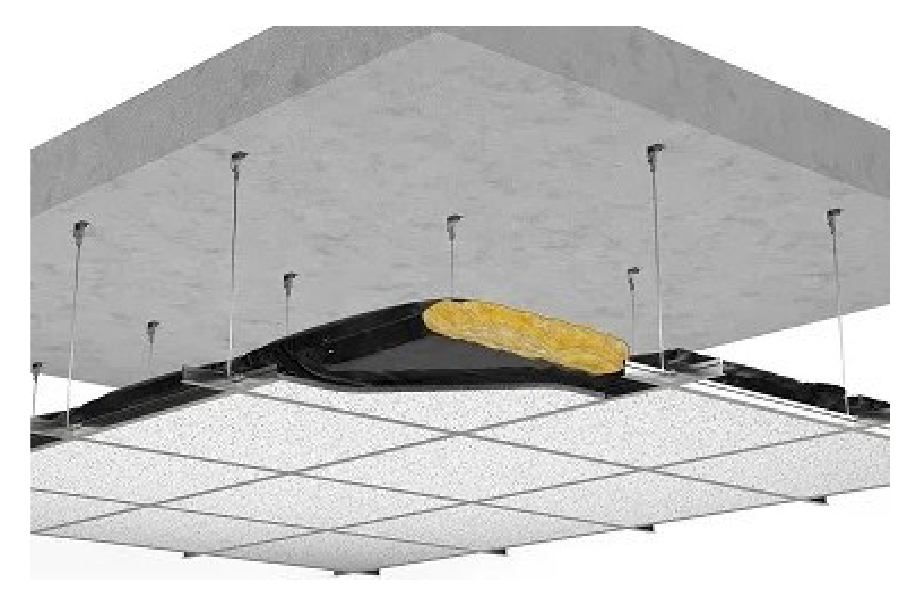

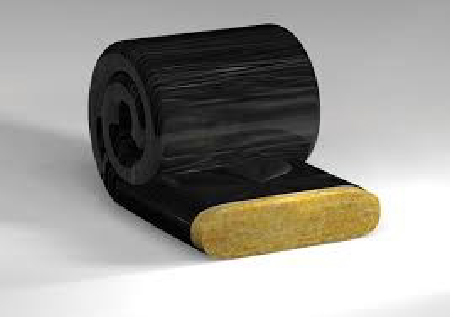

The CCL range of ceiling and interior products are designed to provide thermal, fire and acoustic insulation for suspended ceilings, roof voids and interior partition applications.
PRODUCT

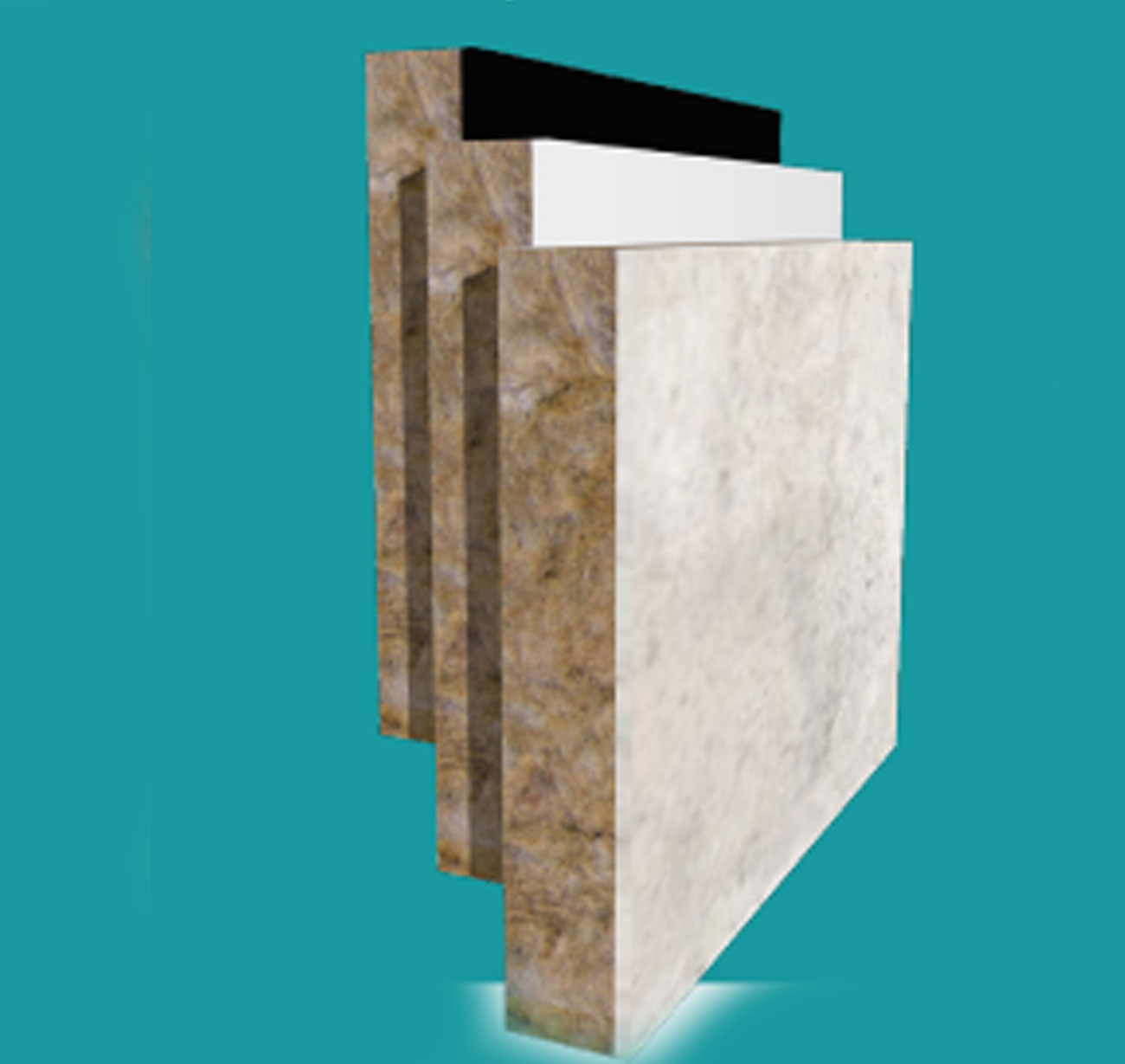

Plain & Faced Rock Mineral Wool Slab
The CCL range of faced rock mineral wool slabs provides thermal, fire, and acoustic insulation solutions for multiple applications including acoustic linings, ceiling systems, timber frames, roof voids & partitioning systems.
Manufactured using non-combustible rock wool slab, manufactured by Rockwool or Knauf, the specified facer material, (white / black glass tissue, reinforced BCO foil, paper etc) is adhered to the face on one or both sides using hot melt (polyolefin based, synthetic resin) adhesive.

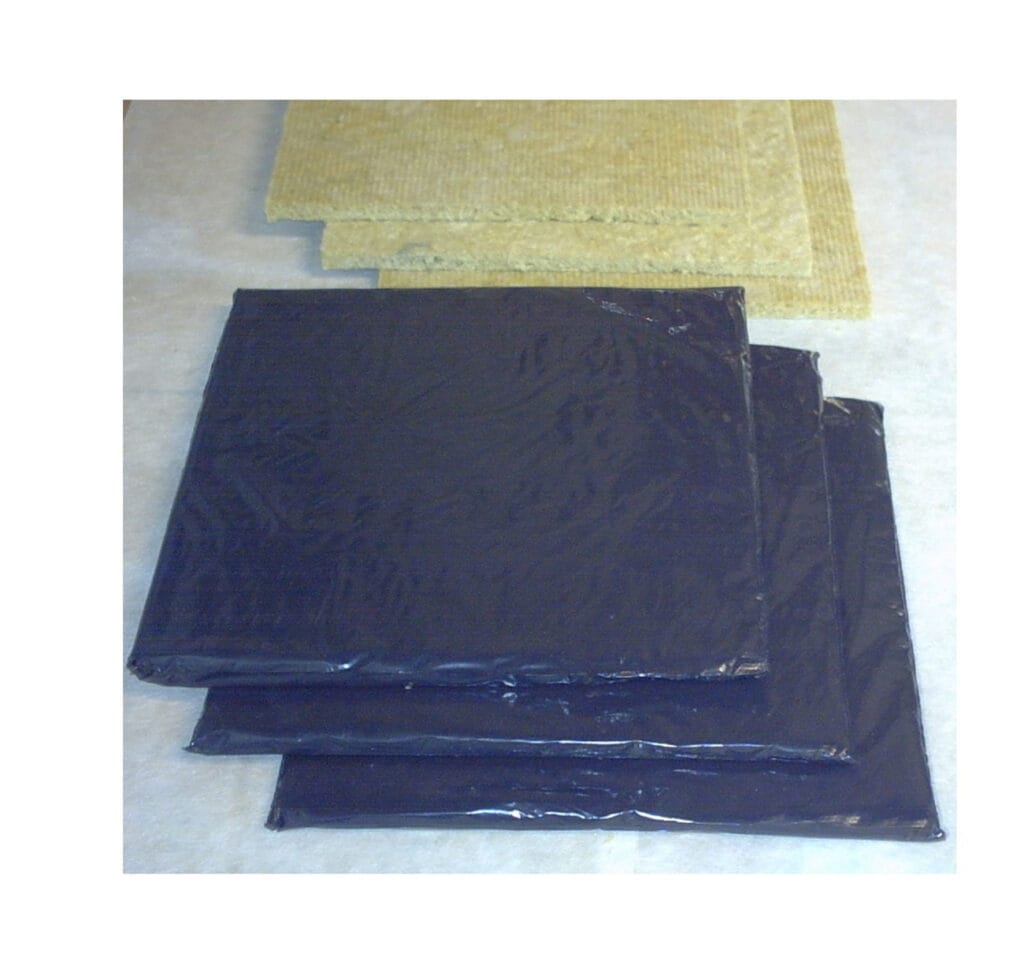

Slabs are also fully wrapped with a combination of products such as foil & tissue or can be polythene enclosed.
The CCL slab range is available in thicknesses from 25mm to 200mm in 5 mm increments and in densities from 33 kgm³ to 140 kgm³ as standard.
CCL plain and faced slabs are supplied 1200mm x 600mm as standard and are manufactured to the nearest slab with no minimum order. Other slab sizes may be available depending on density / thickness.
More thicknesses and densities available upon request. Greater than 200mm can be achieved through bonding. Slabs are also supplied plain, with no facing as required.
PRODUCT

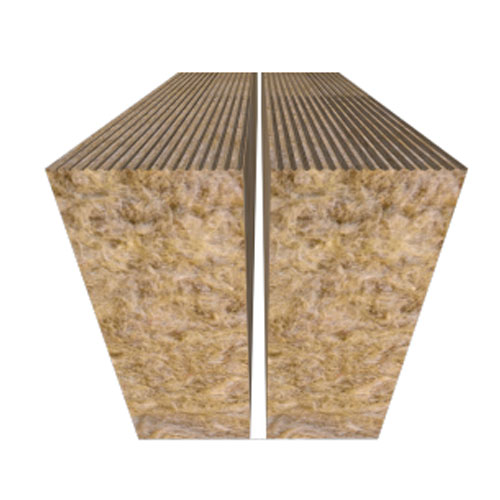

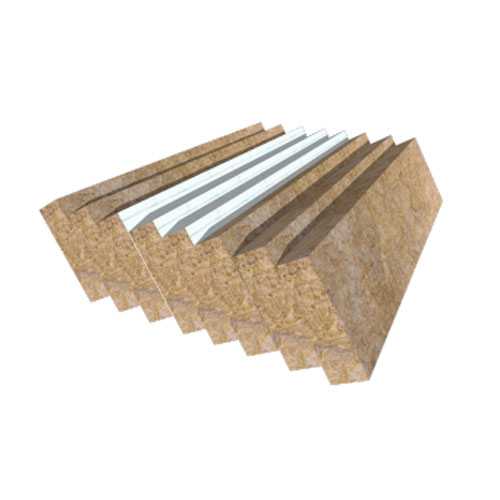

CUT TO SIZE (CTS) RANGE
CCL manufacture precision cut, mineral wool, Expanded Polystyrene (EPS) and PIR insulation boards & strips
in a range of densities, thicknesses, lengths and widths.
CTS Range – Rock Mineral Wool, EPS & PIR:
With no minimum order quantity, less dust and damage, the CCL range of factory cut solutions save time, money and improve the speed of application on site.
CTS solutions are used used in multiple applications ranging from slab perimeter strips in ground floor build-ups, to thermal breaks in modular construction.
Rock mineral wool insulation finished sizes are manufactured to the customers specification in thickness, length, width & density using
Density – 33kg m³ to 140 kg m³
Thickness – 20mm to 240mm (Depending on density)
EPS & PIR finished sizes are manufactured to the customers specification, with EPS generally being EPS 70 grade and PIR with either foil or tissue facings.
Cut strips are supplied boxed, bagged, plain or palletised and are available for collection, delivery to stock or direct to site on pallets with a weather proof covering.
CCL can supply the CTS range using materials from our own stock, materials supplied on a free issue basis, or as a back to back order / reciprocal basis.
There is no minimum order quantity for the CTS range of products.
